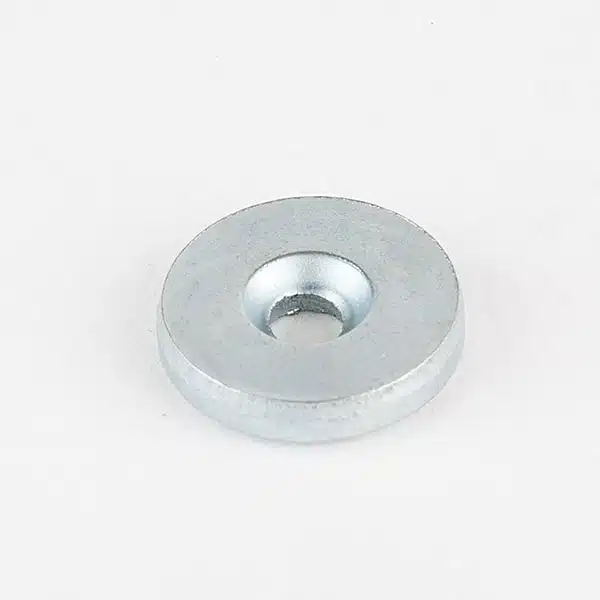

Neodymium Ring Magnets, Countersunk
From $0.66 – $7.99
Our ring shaped magnets offer versatility within your production environment. Adaptable to many different types of applications. Click here to learn more about neodymium magnets and their uses.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (D x T) | 0.375 in x 0.125 in, 0.394 in x 0.197 in, 0.5 in x 0.125 in, 0.625 in x 0.125 in, 0.75 in x 0.125 in, 0.787 in x 0.079 in, 0.787 in x 0.197 in, 0.787 in x 0.394 in, 0.875 in x 0.125 in, 0.906 in x 0.787 in, 0.984 in x 0.197 in, 1 in x 0.187 in |
| Diameter | 0.375 in, 0.394 in, 0.5 in, 0.625 in, 0.75 in, 0.787 in, 0.875 in, 0.906 in, 0.984 in, 1 in |
| Inside Diameter | 0.118 in, 0.126 in, 0.136 in, 0.17 in, 0.194 in, 0.205 in, 0.221 in, 0.236 in |
| Thickness | 0.079 in, 0.125 in, 0.187 in, 0.197 in, 0.394 in, 0.787 in |
| Holding Force (lbs) | 10.2, 10.4, 13.2, 20.5, 20.7, 3.5, 4.6, 4.9, 5.4, 51.1, 7.1, 8.6 |
| C/S Pole | North, South |
| Material | Neodymium |
| Grade | N42 |
| Package Quantity | 1 |
Filter Results
| Part # | Size (D x T) | Diameter | Inside Diameter | Thickness | Holding Force (lbs) | C/S Pole | Grade | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
EP651A | 0.906 in x 0.787 in | 0.906 in | 0.236 in | 0.787 in | 51.1 | North | N42 | View Spec Image OD0.906 ID0.236 T0.787 | $7.99 | QTY DISCOUNT PRICE |
EP651B | 0.906 in x 0.787 in | 0.906 in | 0.236 in | 0.787 in | 51.1 | South | N42 | View Spec Image OD0.906 ID0.236 T0.787 | $7.99 | QTY DISCOUNT PRICE |
N42P1000187CS-S | 1 in x 0.187 in | 1 in | 0.221 in | 0.187 in | 20.5 | South | N42 | View Spec Image OD1.000 ID0.221 T0.187 | $4.68 | QTY DISCOUNT PRICE |
N42P1000187CS-N | 1 in x 0.187 in | 1 in | 0.221 in | 0.187 in | 20.5 | North | N42 | View Spec Image OD1.000 ID0.221 T0.187 | $4.68 | QTY DISCOUNT PRICE |
EP314 | 0.787 in x 0.394 in | 0.787 in | 0.236 in | 0.394 in | 20.7 | North | N42 | View Spec Image OD0.787 ID0.236 T0.394 | $3.75 | QTY DISCOUNT PRICE |
EP315 | 0.787 in x 0.394 in | 0.787 in | 0.236 in | 0.394 in | 20.7 | South | N42 | View Spec Image OD0.787 ID0.236 T0.394 | $3.75 | QTY DISCOUNT PRICE |
N42P875125CS-N | 0.875 in x 0.125 in | 0.875 in | 0.194 in | 0.125 in | 10.2 | North | N42 | View Spec Image OD0.875 ID0.194 T0.125 | $2.94 | QTY DISCOUNT PRICE |
N42P875125CS-S | 0.875 in x 0.125 in | 0.875 in | 0.194 in | 0.125 in | 10.2 | South | N42 | View Spec Image OD0.875 ID0.194 T0.125 | $2.94 | QTY DISCOUNT PRICE |
EP313B | 0.984 in x 0.197 in | 0.984 in | 0.236 in | 0.197 in | 13.2 | South | N42 | View Spec Image OD0.984 ID0.236 T0.197 | $2.62 | QTY DISCOUNT PRICE |
EP313A | 0.984 in x 0.197 in | 0.984 in | 0.236 in | 0.197 in | 13.2 | North | N42 | View Spec Image OD0.984 ID0.236 T0.197 | $2.62 | QTY DISCOUNT PRICE |
N42P750125CS-N | 0.75 in x 0.125 in | 0.75 in | 0.194 in | 0.125 in | 8.6 | North | N42 | View Spec Image OD0.750 ID0.194 T0.125 | $2.2 | QTY DISCOUNT PRICE |
N42P750125CS-S | 0.75 in x 0.125 in | 0.75 in | 0.194 in | 0.125 in | 8.6 | South | N42 | View Spec Image OD0.750 ID0.194 T0.125 | $2.2 | QTY DISCOUNT PRICE |
EP374B | 0.787 in x 0.197 in | 0.787 in | 0.205 in | 0.197 in | 10.4 | South | N42 | View Spec Image OD0.787 ID0.205 T0.197 | $1.98 | QTY DISCOUNT PRICE |
EP374A | 0.787 in x 0.197 in | 0.787 in | 0.205 in | 0.197 in | 10.4 | North | N42 | View Spec Image OD0.787 ID0.205 T0.197 | $1.98 | QTY DISCOUNT PRICE |
N42P625125CS-N | 0.625 in x 0.125 in | 0.625 in | 0.17 in | 0.125 in | 7.1 | North | N42 | View Spec Image OD0.625 ID0.170 T0.125 | $1.46 | QTY DISCOUNT PRICE |
N42P625125CS-S | 0.625 in x 0.125 in | 0.625 in | 0.17 in | 0.125 in | 7.1 | South | N42 | View Spec Image OD0.625 ID0.170 T0.125 | $1.46 | QTY DISCOUNT PRICE |
N42P500125CS-S | 0.5 in x 0.125 in | 0.5 in | 0.136 in | 0.125 in | 5.4 | South | N42 | View Spec Image OD0.500 ID0.136 T0.125 | $1.13 | QTY DISCOUNT PRICE |
N42P500125CS-N | 0.5 in x 0.125 in | 0.5 in | 0.136 in | 0.125 in | 5.4 | North | N42 | View Spec Image OD0.500 ID0.136 T0.125 | $1.13 | QTY DISCOUNT PRICE |
EP312B | 0.787 in x 0.079 in | 0.787 in | 0.118 in | 0.079 in | 4.9 | South | N42 | View Spec Image OD0.787 ID0.118 T0.079 | $1.35 | QTY DISCOUNT PRICE |
EP312A | 0.787 in x 0.079 in | 0.787 in | 0.118 in | 0.079 in | 4.9 | North | N42 | View Spec Image OD0.787 ID0.118 T0.079 | $1.35 | QTY DISCOUNT PRICE |
N42P375125CS-N | 0.375 in x 0.125 in | 0.375 in | 0.136 in | 0.125 in | 3.5 | North | N42 | View Spec Image OD0.375 ID0.136 T0.125 | $0.71 | QTY DISCOUNT PRICE |
N42P375125CS-S | 0.375 in x 0.125 in | 0.375 in | 0.136 in | 0.125 in | 3.5 | South | N42 | View Spec Image OD0.375 ID0.136 T0.125 | $0.71 | QTY DISCOUNT PRICE |
EP301B | 0.394 in x 0.197 in | 0.394 in | 0.126 in | 0.197 in | 4.6 | South | N42 | View Spec Image OD0.394 ID0.126 T0.197 | $0.66 | QTY DISCOUNT PRICE |
EP301A | 0.394 in x 0.197 in | 0.394 in | 0.126 in | 0.197 in | 4.6 | North | N42 | View Spec Image OD0.394 ID0.126 T0.197 | $0.66 | QTY DISCOUNT PRICE |
