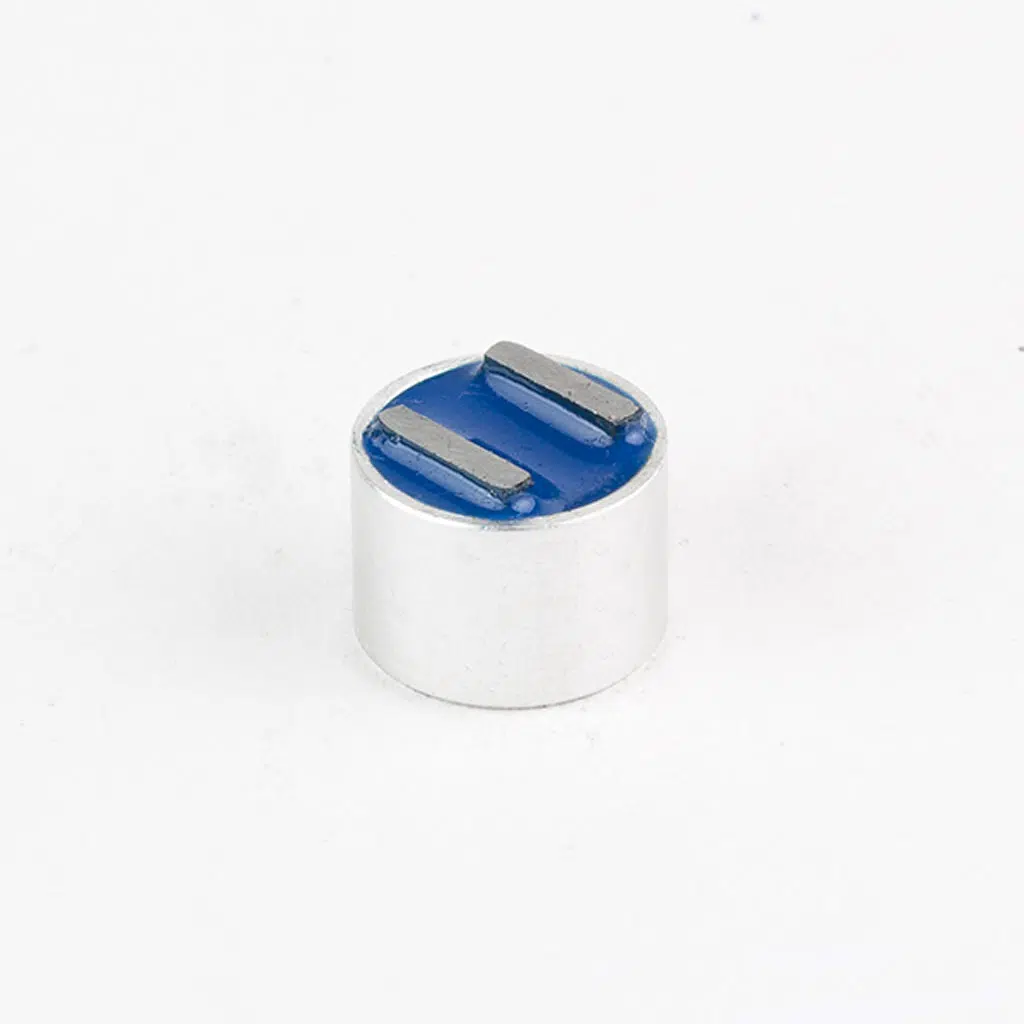

Ceramic Pot Magnets, Two-Pole, Untapped
From $7.09 – $7.79
Ceramic Holding Assemblies provide a strong magnetic field. The ceramic magnet material possesses high coercive force and resists demagnetization from heat, vibration, and electrical fields. Most of our ceramic assemblies are permanently embedded in epoxy plastic. They are typically more economical than Alnico assemblies and can be used in temperatures up to 180°F. Temperatures higher than 180°F can cause the standard epoxy that holds the magnet material to fail.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (D x T) | 0.25 in x 0.5 in, 0.25 in x 0.75 in, 0.375 in x 0.5 in, 0.375 in x 0.75 in, 0.375 in x 1 in, 0.5 in x 0.5 in, 0.5 in x 0.75 in, 0.5 in x 1 in |
| Diameter | 0.25 in, 0.375 in, 0.5 in |
| Thickness | 0.5 in, 0.75 in, 1 in |
| Holding Force (lbs) | |
| Material | Ceramic |
| No. Poles | 2 |
| Package Quantity | 1 |
Filter Results
| Part # | Size (D x T) | Diameter | Thickness | Holding Force (lbs) | No. Poles | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|
BM1904X1 | 0.5 in x 1 in | 0.25 in | 0.5 in | 5 | 2 | View Spec Image D.500 L1.000 | $7.79 | QTY DISCOUNT PRICE |
BM1904X3/4 | 0.5 in x 0.75 in | 0.25 in | 0.5 in | 4 | 2 | View Spec Image D.500 L.750 | $7.69 | QTY DISCOUNT PRICE |
BM1904X1/2 | 0.25 in | 0.5 in | 3 | 2 | View Spec Image | $7.59 | QTY DISCOUNT PRICE | |
BM1904X1/2 | 0.5 in x 0.5 in | 0.25 in | 0.5 in | 3 | 2 | View Spec Image D.500 L.500 | $7.59 | QTY DISCOUNT PRICE |
BM1902X1 | 0.375 in x 1 in | 0.25 in | 0.5 in | 2.5 | 2 | View Spec Image D.375 L1.000 | $7.49 | QTY DISCOUNT PRICE |
BM1902X3/4 | 0.375 in x 0.75 in | 0.25 in | 0.5 in | 2 | 2 | View Spec Image D.375 L.750 | $7.39 | QTY DISCOUNT PRICE |
BM1902X1/2 | 0.375 in x 0.5 in | 0.25 in | 0.5 in | 1 | 2 | View Spec Image D.375 L.500 | $7.29 | QTY DISCOUNT PRICE |
BM1900X3/4 | 0.25 in x 0.75 in | 0.25 in | 0.5 in | 0.5 | 2 | View Spec Image D.250 L.750 | $7.19 | QTY DISCOUNT PRICE |
BM1900X1/2 | 0.25 in x 0.5 in | 0.25 in | 0.5 in | 0.4 | 2 | View Spec Image D.250 L.500 | $7.09 | QTY DISCOUNT PRICE |
BM1900X1/2 | 0.25 in | 0.5 in | 0.4 | 2 | View Spec Image | $7.09 | QTY DISCOUNT PRICE |
