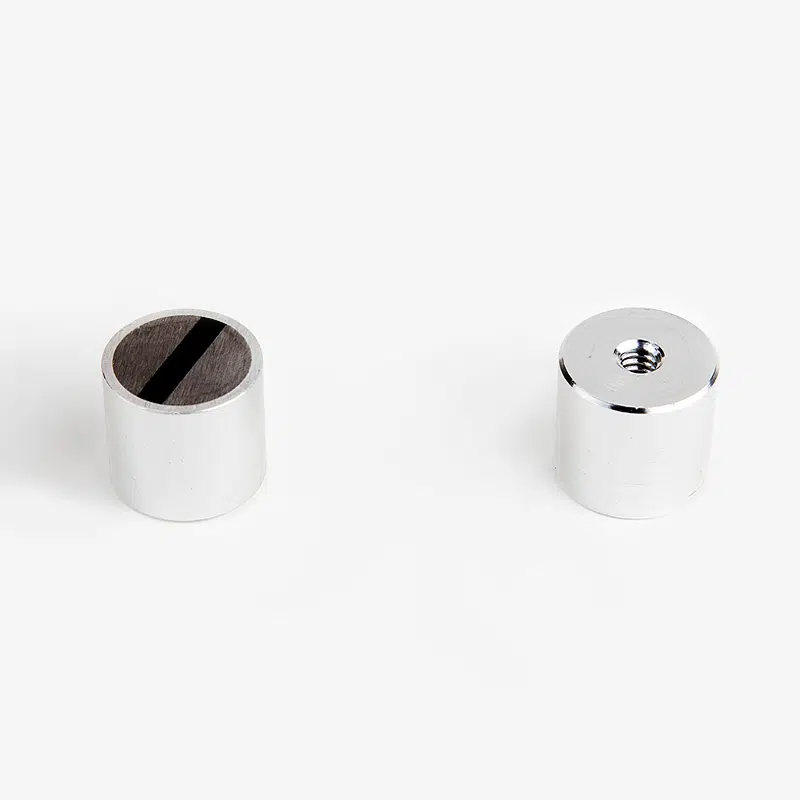

Neodymium Assemblies, Center, Tapped
From $1.56 – $24.86
Rare Earth Holding Assemblies offer the ultimate in holding strength. They deliver more magnetic power per ounce than any other assembly. They are well-suited to applications where size and weight must be kept to a minimum. Rare Earth Holding Assemblies are not intended for high-temperature applications and should not be used in environments above 180°F. Temperatures above this level can cause the epoxy plastic that surrounds the magnet material to fail.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (D x T) | 0.5 in x 0.469 in, 0.625 in x 0.625 in, 0.744 in x 0.315 in, 0.875 in x 0.813 in, 0.984 in x 0.315 in, 1 in x 1 in, 1.26 in x 0.315 in |
| Diameter | 0.5 in, 0.625 in, 0.744 in, 0.875 in, 0.984 in, 1 in, 1.26 in |
| Thickness | 0.315 in, 0.469 in, 0.625 in, 0.813 in, 1 in |
| Tap Size | #.25-20, #10-32, M5, None |
| Tap Depth | 0.188, 0.203, 0.234 |
| Holding Force (lbs) | |
| Material | Neodymium |
| Package Quantity | 1 |
Filter Results
| Part # | Size (D x T) | Diameter | Thickness | Tap Size | Tap Depth | Holding Force (lbs) | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|

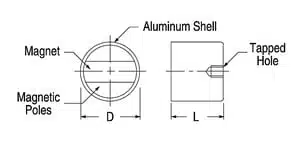

BM2012 | 1 in x 1 in | 1 in | 1 in | #.25-20 | 0.234 | 33 | View Spec Image D1.000 L1.000 | $24.86 | QTY DISCOUNT PRICE |
BM2010 | 0.875 in x 0.813 in | 0.875 in | 0.813 in | #.25-20 | 0.234 | 29 | View Spec Image D.875 L.813 | $23.25 | QTY DISCOUNT PRICE |
BM2006 | 0.625 in x 0.625 in | 0.625 in | 0.625 in | #.25-20 | 0.203 | 14 | View Spec Image D.625 L.625 | $21.48 | QTY DISCOUNT PRICE |
BM2004 | 0.5 in x 0.469 in | 0.5 in | 0.469 in | #10-32 | 0.203 | 6 | View Spec Image D.500 L.469 | $17.05 | QTY DISCOUNT PRICE |
EP615-PLAIN | 1.26 in x 0.315 in | 1.26 in | 0.315 in | M5 | 0.188 | 26.5 | View Spec Image D1.260 L.315 | $3.57 | QTY DISCOUNT PRICE |
EP616-PLAIN | 0.984 in x 0.315 in | 0.984 in | 0.315 in | None | 34 | View Spec Image D.984 L.315 | $2.75 | QTY DISCOUNT PRICE | |
EP606 | 0.744 in x 0.315 in | 0.744 in | 0.315 in | M5 | 0.188 | 20.3 | View Spec Image D.744 L.315 | $1.56 | QTY DISCOUNT PRICE |
