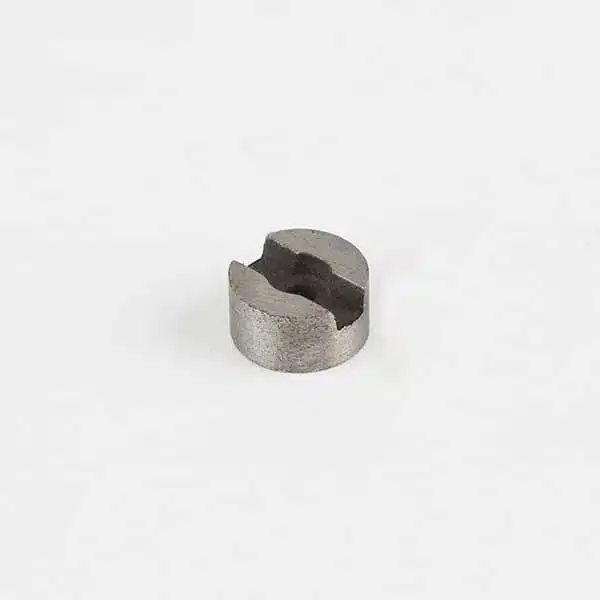

Alnico U-Shaped Magnet, Square Cutout, Grade 2
From $0.46 – $0.57
Alnico magnets are widely used in industrial and consumer applications where strong permanent magnets are needed; examples are electric motors, electric guitar pickups, microphones, sensors, loudspeakers, traveling wave tubes, and cow magnets.
Filter Results
| Part # | Size (D x T) | Diameter | Thickness | Inside Diameter | Wt. (lbs) | Holding Force (lbs) | Grade | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

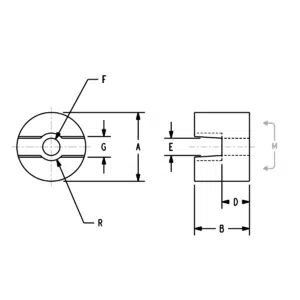

SU1606 | 0.4 in x 0.202 in | 0.4 in | 0.187 in | 0.098 in | 0.004 | 0.438 | 2 | View Spec Image A.400 B.202 D.114 E.099 F.098 G.130 R.086 | $0.57 | QTY DISCOUNT PRICE |
SU1607 | 0.4 in x 0.187 in | 0.4 in | 0.187 in | 0.098 in | 0.004 | 0.75 | 2 | View Spec Image A.400 B.187 D.109 E.099 F.098 G.130 R.086 | $0.46 | QTY DISCOUNT PRICE |
