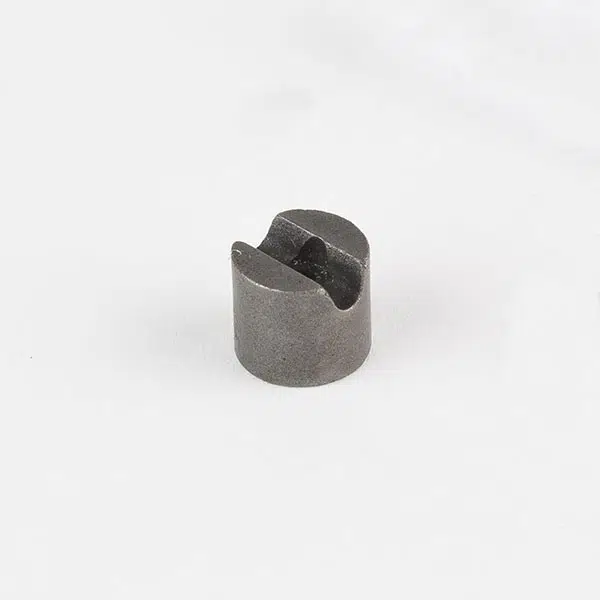

Alnico U-Shaped Magnet, Round Cutout, Grade 2
From $0.84 – $7.67
Alnico magnets are widely used in industrial and consumer applications where strong permanent magnets are needed; examples are electric motors, electric guitar pickups, microphones, sensors, loudspeakers, traveling wave tubes, and cow magnets.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (D x T) | 0.5 in x 0.245 in, 0.5 in x 0.265 in, 0.5 in x 0.442 in, 0.5 in x 0.457 in |
| Diameter | 0.5 in |
| Thickness | 0.245 in, 0.265 in, 0.442 in, 0.457 in |
| Grade | 2 |
| Inside Diameter | 0.101 in |
| Material | Alnico |
| Wt. (lbs) | 0.009, 0.01, 0.017, 0.018 |
| Holding Force (lbs) | |
| Package Quantity | 1 |
Filter Results
| Part # | Size (D x T) | Diameter | Thickness | Grade | Inside Diameter | Wt. (lbs) | Holding Force (lbs) | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
SU1613 | 0.5 in x 0.245 in | 0.5 in | 0.245 in | 2 | 0.101 in | 0.009 | 0.875 | View Spec Image A.500 B.245 D.119 F.101 G.187 | $7.67 | QTY DISCOUNT PRICE |
SU1611 | 0.5 in x 0.442 in | 0.5 in | 0.442 in | 2 | 0.101 in | 0.009 | 1.563 | View Spec Image A.500 B.442 D.317 F.101 G.187 | $1.17 | QTY DISCOUNT PRICE |
SU1610 | 0.5 in x 0.457 in | 0.5 in | 0.457 in | 2 | 0.101 in | 0.009 | 1.125 | View Spec Image A.500 B.457 D.325 F.101 G.187 | $0.97 | QTY DISCOUNT PRICE |
SU1612 | 0.5 in x 0.265 in | 0.5 in | 0.265 in | 2 | 0.101 in | 0.009 | 0.813 | View Spec Image A.500 B.265 D.130 F.101 G.187 | $0.84 | QTY DISCOUNT PRICE |
