Alnico Ring Magnets, Grade 8H
From $0.93 – $2.50
Alnico magnets are widely used in industrial and consumer applications where strong permanent magnets are needed; examples are electric motors, electric guitar pickups, microphones, sensors, loudspeakers, traveling wave tubes, and cow magnets.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (D x T) | 0.312 in x 0.125 in, 0.525 in x 0.15 in |
| Diameter | 0.312 in, 0.525 in |
| Inside Diameter | 0.13 in, 0.25 in |
| Thickness | 0.125 in, 0.15 in |
| Wt. (lbs) | 0.032, 0.102 |
| Material | Alnico |
| Grade | 8H |
| Package Quantity | 1 |
Filter Results

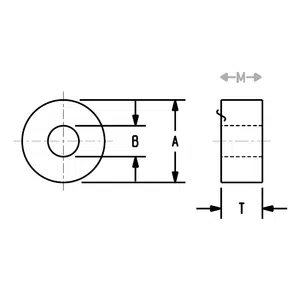

| Part # | Size (D x T) | Diameter | Inside Diameter | Thickness | Wt. (lbs) | Grade | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|
SD-8205 | 0.525 in x 0.15 in | 0.525 in | 0.25 in | 0.15 in | 0.032 | 8H | View Spec Image A.525 B.250 T.150 | $2.5 | QTY DISCOUNT PRICE |

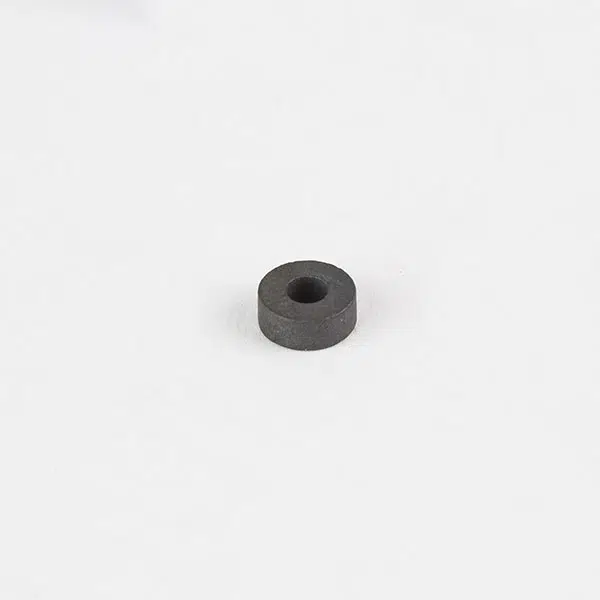

SD-8202 | 0.312 in x 0.125 in | 0.312 in | 0.13 in | 0.125 in | 0.032 | 8H | View Spec Image A.312 B.130 T.125 | $0.93 | QTY DISCOUNT PRICE |
