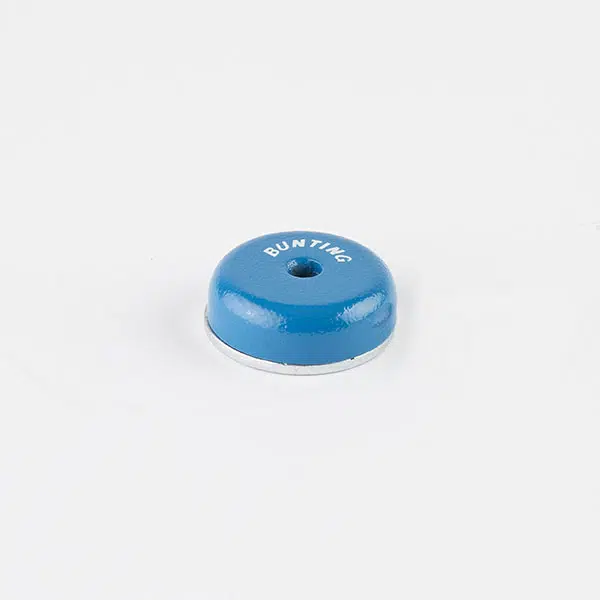

Alnico Pot Magnets, Shallow
From $5.56 – $10.45
Alnico Holding Assemblies are well-suited for high-heat applications. Alnico magnets have the widest range of temperature stability of any standard magnetic material. At temperatures as high as 840°F, they maintain about 78% of their room-temperature magnetic properties. Alnico assemblies are strongly recommended for use in temperature ranges from 180-800°F. We recommend these magnets be mounted with nonferrous fasteners and insulated when installed in ferrous materials to avoid holding value drops of 20% or more.
Filter Results
Diameter
Holding Force
Thickness
| Part # | Size (D x T) | Inside Diameter | Bore | Diameter | Thickness | Holding Force (lbs) | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|
BM1059 | 1.5 in x 0.421875 in | 0.34375 in | 0.1875 | 1.5 in | 0.421875 in | 29 | View Spec Image A.34375 B.1875 D1.500 L.421875 | $10.45 | QTY DISCOUNT PRICE |
BM1057 | 1.125 in x 0.34375 in | 0.34375 in | 0.1875 | 1.125 in | 0.34375 in | 11 | View Spec Image A.34375 B.1875 D1.125 L.34375 | $7.63 | QTY DISCOUNT PRICE |
BM1054 | 0.75 in x 0.3 in | 0.385 in | 0.18 | 0.75 in | 0.3 in | 4.25 | View Spec Image A.385 B.180 D.750 L.300 | $5.56 | QTY DISCOUNT PRICE |
