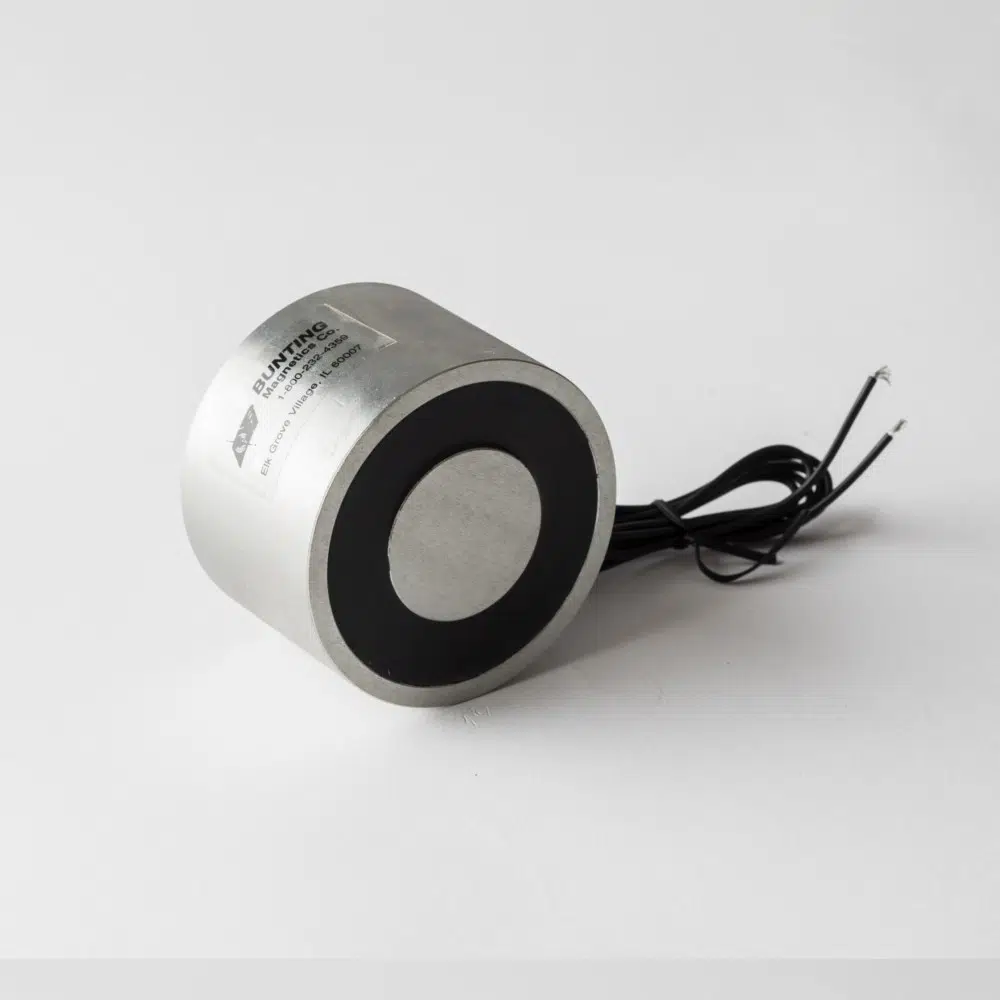

Round Electromagnets, Flat-Faced
From $22.00 – $200.00
BuyMagnets.com Round electromagnets handle ferrous materials safely and securely. Electromagnets provide an efficient and economical solution for handling and holding parts. Available in a number of shapes and sizes, our electromagnets require little maintenance and can be used in a variety of manual and automated applications. (Special sizes upon request).
These electromagnets are “100% Duty Cycle.”
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Holding Force (lbs) | |
| Watts | 0.7, 1, 1.4, 1.5, 12, 3, 3.3, 33, 4.5, 5.2, 7.8, 8 |
| DC Volts | 12 |
| Diameter | 0.5 in, 0.75 in, 1 in, 1.25 in, 1.75 in, 2 in, 3 in, 3.5 in, 4 in, 6 in |
| Height | 0.75 in, 1.25 in, 1.5 in, 1.625 in, 2 in, 3 in |
| Thread | (2) 1/4–20, (2) 3/8–16, 1/4–20, 10–32, 6–32 |
| Thread Depth | 0.25, 0.375, 0.5, 0.625 |
| Wt. | 0.09375, 0.10625, 0.11875, 0.1625, 0.2625, 0.6875, 1, 1.50 oz, 3.25, 3.8 oz, 8, 9 |
| Package Quantity | 1 |
Filter Results
| Part # | Holding Force (lbs) | Watts | DC Volts | Diameter | Height | Thread | Thread Depth | Wt. | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

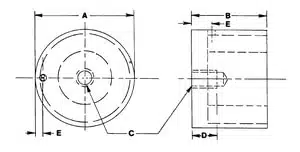

BDE-6012-12 | 1000 | 7.8 | 12 | 6 in | 1.25 in | (2) 1/4--20 | 0.25 | 8 | View Spec Image A6.00 B1.250 C(2).25-20 D.625 | $200 | QTY DISCOUNT PRICE |
BDE-4032-12 | 900 | 33 | 12 | 4 in | 3 in | (2) 1/4--20 | 0.25 | 9 | View Spec Image A4.00 B3.000 C(2).375-16 D.625 | $160 | QTY DISCOUNT PRICE |
BDE-3515-12 | 650 | 8 | 12 | 3.5 in | 1.5 in | (2) 1/4--20 | 0.25 | 3.25 | View Spec Image A3.50 B1.500 C(2).25-20 D.500 | $110 | QTY DISCOUNT PRICE |
BDE-3020-12 | 500 | 12 | 12 | 3 in | 2 in | (2) 1/4--20 | 0.25 | 3.25 | View Spec Image A3.00 B2.000 C(2).25-20 D.500 | $105 | QTY DISCOUNT PRICE |
BDE-2016-12 | 220 | 5.2 | 12 | 2 in | 1.625 in | (2) 1/4--20 | 0.25 | 1 | View Spec Image A2.00 B1.625 C.25-20 D.500 | $59 | QTY DISCOUNT PRICE |
BDE-1716-12 | 160 | 3 | 12 | 1.75 in | 1.625 in | (2) 1/4--20 | 0.25 | 0.6875 | View Spec Image A1.75 B1.625 C.25-20 D.500 | $34 | QTY DISCOUNT PRICE |
BDE-1212-12 | 40 | 4.5 | 12 | 1.25 in | 1.25 in | (2) 1/4--20 | 0.25 | 0.2625 | View Spec Image A1.25 B1.250 C.25-20 D.375 | $27 | QTY DISCOUNT PRICE |
BDE-1208-12 | 45 | 3.3 | 12 | 1.25 in | 0.75 in | (2) 1/4--20 | 0.25 | 3.8 oz | View Spec Image A1.25 B0.75 C1/4-20 D0.50 | $26 | QTY DISCOUNT PRICE |
BDE-1012-12 | 20 | 4.5 | 12 | 1 in | 1.25 in | (2) 1/4--20 | 0.25 | 0.1625 | View Spec Image A1.00 B1.250 C10-32 D.375 | $26 | QTY DISCOUNT PRICE |
BDE-1007-12 | 10 | 1 | 12 | 1 in | 0.75 in | (2) 1/4--20 | 0.25 | 0.11875 | View Spec Image A1.00 B.750 C10-32 D.375 | $25 | QTY DISCOUNT PRICE |
BDE-0812-12 | 10 | 1.5 | 12 | 0.75 in | 1.25 in | (2) 1/4--20 | 0.25 | 0.10625 | View Spec Image A.75 B1.250 C10-32 D.375 | $24 | QTY DISCOUNT PRICE |
BDE-0515-12 | 4 | 1.4 | 12 | 0.5 in | 1.5 in | (2) 1/4--20 | 0.25 | 0.09375 | View Spec Image A.50 B1.500 C6-32 D.375 | $23 | QTY DISCOUNT PRICE |
BDE-0808-12 | 6 | 0.7 | 12 | 0.75 in | 0.75 in | (2) 1/4--20 | 0.25 | 1.50 oz | View Spec Image A0.75 B0.75 C10-32 D0.25 | $22 | QTY DISCOUNT PRICE |
