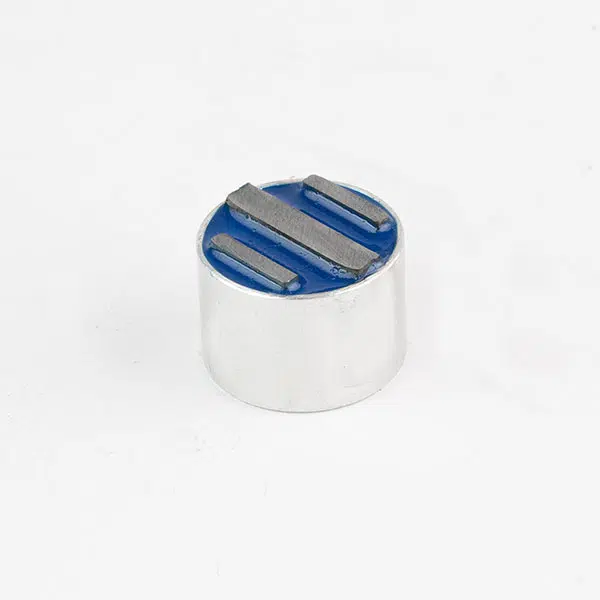

Neodymium Assemblies, 2-Pole and 3-Pole
From $12.00 – $32.00
Rare Earth Holding Assemblies offer the ultimate in holding strength. They deliver more magnetic power per ounce than any other assembly. They are well-suited to applications where size and weight must be kept to a minimum. Rare Earth Holding Assemblies are not intended for high-temperature applications and should not be used in environments above 180°F. Temperatures above this level can cause the epoxy plastic that surrounds the magnet material to fail.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (D x T) | 0.25 in x 0.5 in, 0.375 in x 0.5 in, 0.5 in x 0.5 in, 0.625 in x 0.5 in, 0.75 in x 0.5 in, 1 in x 0.5 in, 1.25 in x 0.5 in |
| Diameter | 0.25 in, 0.375 in, 0.5 in, 0.625 in, 0.75 in, 1 in, 1.25 in |
| Thickness | 0.5 in |
| No. Poles | 2, 3 |
| Wt. (lbs) | 0.003, 0.006, 0.011, 0.021, 0.031, 0.056, 0.089 |
| Holding Force (lbs) | |
| Material | Neodymium |
| Package Quantity | 1 |
Filter Results

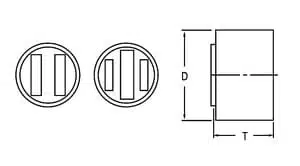

| Part # | Size (D x T) | Diameter | Thickness | No. Poles | Wt. (lbs) | Holding Force (lbs) | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|
BM2034RE | 1.25 in x 0.5 in | 1.25 in | 0.5 in | 3 | 0.003 | 85 | View Spec Image D1.250 T.500 | $32 | QTY DISCOUNT PRICE |
BM2033RE | 1 in x 0.5 in | 1 in | 0.5 in | 3 | 0.003 | 55.5 | View Spec Image D1.000 T.500 | $30 | QTY DISCOUNT PRICE |
BM2032RE | 0.75 in x 0.5 in | 0.75 in | 0.5 in | 3 | 0.003 | 34.6 | View Spec Image D.750 T.500 | $25.5 | QTY DISCOUNT PRICE |
BM2031RE | 0.625 in x 0.5 in | 0.625 in | 0.5 in | 3 | 0.003 | 19.3 | View Spec Image D.625 T.500 | $25 | QTY DISCOUNT PRICE |
BM2023RE | 0.5 in x 0.5 in | 0.5 in | 0.5 in | 2 | 0.003 | 10.4 | View Spec Image D.500 T.500 | $13.5 | QTY DISCOUNT PRICE |
BM2022RE | 0.375 in x 0.5 in | 0.375 in | 0.5 in | 2 | 0.003 | 5.5 | View Spec Image D.375 T.500 | $13 | QTY DISCOUNT PRICE |
BM2021RE | 0.25 in x 0.5 in | 0.25 in | 0.5 in | 2 | 0.003 | 2 | View Spec Image D.250 T.500 | $12 | QTY DISCOUNT PRICE |
