Magnetic Hand Tools, Holding Magnet
From $0.37 – $3.94

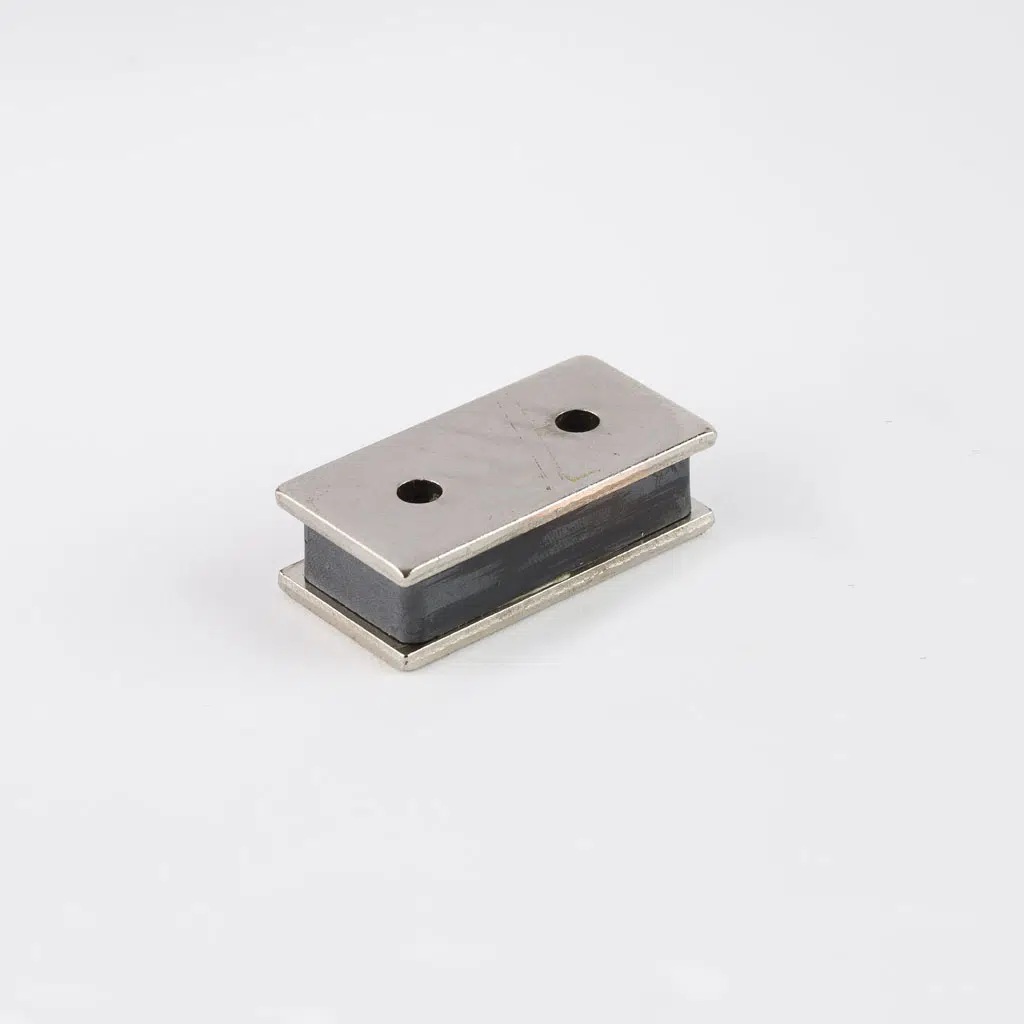

Constructed of a magnet embedded in a steel channel,
or a magnet sandwiched between two steel plates,
these magnets provide strong pull for their sizes. Most
come with mounting holes.
Holding power is tested on a flat, machined steel plate,
1/2” thick. If the surface to which the magnet is to be
attached is rough, rusty or painted, the holding force
may be reduced. For critical applications, build in a
safety factor of two or three.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (H x L x W) | 0.25 in x 1 in x 0.875 in, 0.312 in x 1 in x 0.812 in, 0.312 in x 2 in x 0.937 in, 0.625 in x 2 in x 1 in |
| Holding Force (lbs) | |
| Width | 0.812 in, 0.875 in, 0.937 in, 1 in |
| Length | 1 in, 2 in |
| Thickness | 0.25 in, 0.312 in, 0.625 in |
| Hole Diameter | 0.125, 0.16, 0.187 |
| Package Quantity | 1 |
Filter Results
| Part # | Size (H x L x W) | Holding Force (lbs) | Width | Length | Thickness | Hole Diameter | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|
MO-81 | 0.625 in x 2 in x 1 in | 45 | 1 in | 2 in | 0.625 in | 0.187 | View Spec Image A1.00 B2.00 C.625 | $3.94 | QTY DISCOUNT PRICE |
MO-80E | 0.312 in x 2 in x 0.937 in | 6 | 0.937 in | 2 in | 0.312 in | 0.16 | View Spec Image A.937 B2.00 C.312 | $0.91 | QTY DISCOUNT PRICE |
MO-70V | 0.25 in x 1 in x 0.875 in | 7 | 0.875 in | 1 in | 0.25 in | 0.125 | View Spec Image A.875 B1.00 C.250 | $0.72 | QTY DISCOUNT PRICE |
MO-70SV | 0.312 in x 1 in x 0.812 in | 8 | 0.812 in | 1 in | 0.312 in | 0.187 | View Spec Image A.812 B1.00 C.312 | $0.37 | QTY DISCOUNT PRICE |
