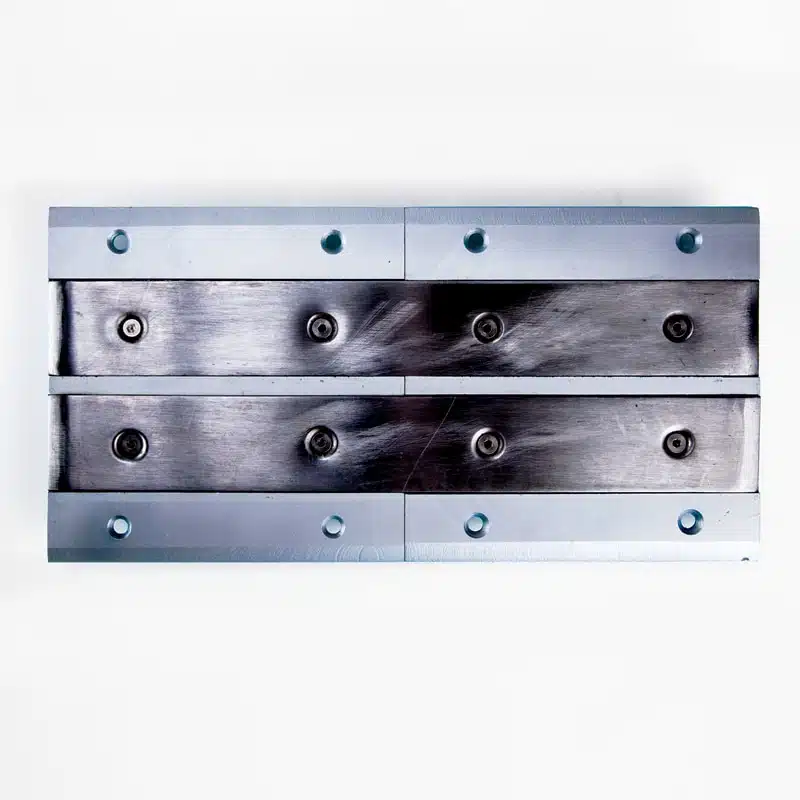

Grinder Plate Magnets
From $141.00 – $344.00
Your regrind operation runs with a risk of tramp metal contamination. Protect it easily and economically with Bunting® Grinder Plate Magnets. Grinder Plate Magnets are used as separators for removing ferrous particles from materials moving freely through conveyors. Easy to install in your granulator’s feed tray, just cut an opening in the feed tray and bolt the pre-drilled flange of the magnet to the tray, using the holes and hardware provided. Our Grinder Plate Magnets are manufactured with a rugged cast aluminum frame. The back plate and magnetic pole face are made of mild steel. Grinder Plate Magnets protect the housing from tramp metal contamination, as well as generate a clean final product. Grinder plate magnets are an economical means for the separation process to be effective and can be easily installed in the system. For Plastic Granulators – In Stock, Ready to Ship
Ground Shipping Only.
Plate Magnets cannot be shipped via UPS Air.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Length | 11.5 in, 13 in, 15 in, 17 in, 19 in, 21 in, 23 in, 5.5 in, 7.5 in, 9.5 in |
| Magnet Length | 11, 12.5, 14.5, 16.5, 18.5, 20.5, 22.5, 5, 7, 9 |
| Width | 5 in |
| Package Quantity | 1 |
Filter Results
| Part # | Length | Magnet Length | Width | Diagram | Price | |
|---|---|---|---|---|---|---|

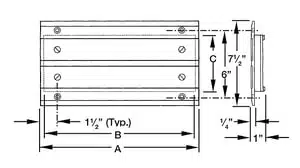

GPM8024 | 23 in | 22.5 | 5 in | View Spec Image A23.0 B22.5 C5.0 | $344 | QTY DISCOUNT PRICE |
GPM8022 | 21 in | 20.5 | 5 in | View Spec Image A21.0 B20.5 C5.0 | $315 | QTY DISCOUNT PRICE |
GPM8020 | 19 in | 18.5 | 5 in | View Spec Image A19.0 B18.5 C5.0 | $291 | QTY DISCOUNT PRICE |
GPM8018 | 17 in | 16.5 | 5 in | View Spec Image A17.0 B16.5 C5.0 | $280 | QTY DISCOUNT PRICE |
GPM8016 | 15 in | 14.5 | 5 in | View Spec Image A15.0 B14.5 C5.0 | $264 | QTY DISCOUNT PRICE |
GPM8014 | 13 in | 12.5 | 5 in | View Spec Image A13.0 B12.5 C5.0 | $247 | QTY DISCOUNT PRICE |
GPM8012 | 11.5 in | 11 | 5 in | View Spec Image A11.5 B11 C5.0 | $231 | QTY DISCOUNT PRICE |
GPM8010 | 9.5 in | 9 | 5 in | View Spec Image A9.5 B9 C5.0 | $198 | QTY DISCOUNT PRICE |
GPM8008 | 7.5 in | 7 | 5 in | View Spec Image A7.5 B7 C5.0 | $167 | QTY DISCOUNT PRICE |
GPM8006 | 5.5 in | 5 | 5 in | View Spec Image A5.5 B5 C5.0 | $141 | QTY DISCOUNT PRICE |
