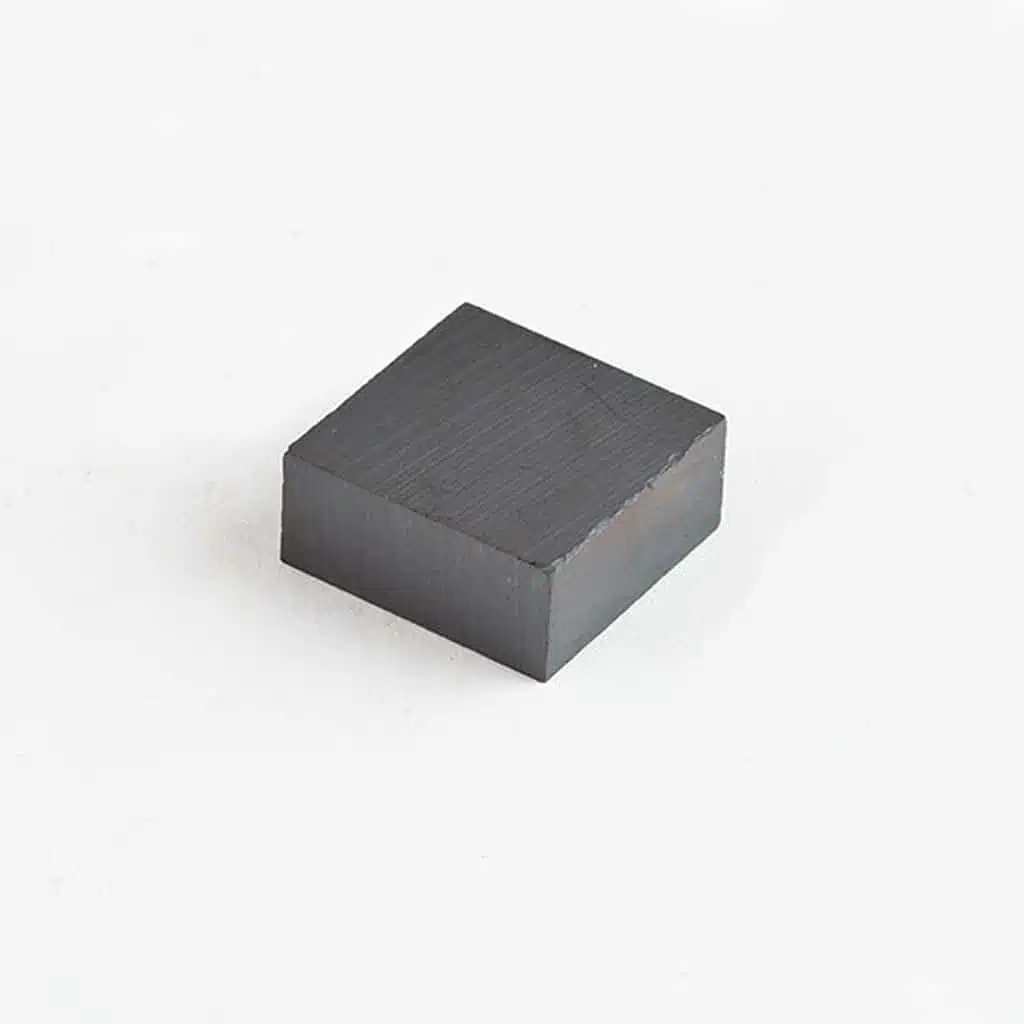

Ceramic Rectangle Magnets, C-8 Block

From $0.31 – $35.00

Category: Ceramic Rectangle Magnets Tags: Block, Permanent Magnet

Description
Additional information

Ceramic 8 is an excellent choice wherever magnet length is at a minimum or where the magnetic circuit is subject to severe demagnetizing fields. Some typical uses include holding magnets, motors, reed switches, and Hall-Effect devices.

Common applications include; speaker magnets, DC brushless motors, outboard motors, DC permanent motors, lifting, holding, retrieving, and separating.

Read Less

Weight	N/A
Dimensions	N/A
Size (H x L x W)	0.090 x 4 x 4, 0.093 in x 2 in x 0.785 in, 0.125 in x 2 in x 1 in, 0.125 x 4 x 4, 0.158 x 4 x 4, 0.187 in x 2 in x 1 in, 0.187 x 6 x 4, 0.197 x 6 x 4, 0.25 in x 0.5 in x 0.375 in, 0.25 in x 2 in x 1 in, 0.25 in x 3 in x 2 in, 0.250 x 6 x 4, 0.312 in x 2 in x 1 in, 0.375 in x 2 in x 1 in, 0.375 x 6 x 4, 0.392 in x 1.860 in x 0.86 in, 0.392 in x 1.875 in x 0.406 in, 0.392 in x 1.875 in x 0.875 in, 0.395 in x 0.438 in x 1 in, 0.395 in x 10.5 in x 0.531 in, 0.395 in x 10.5 in x 0.688 in, 0.395 in x 2 in x 0.375 in, 0.395 in x 2 in x 0.5 in, 0.395 in x 2 in x 0.531 in, 0.395 in x 2 in x 0.688 in, 0.395 in x 2 in x 1 in, 0.5 in x 2 in x 1 in, 0.625 x 6 x 4, 0.75 in x 10.5 in x 1 in, 0.75 in x 10.625 in x 3.532 in, 0.75 in x 2 in x 1 in, 0.75 in x 6 in x 4 in, 0.750 x 6 x 4, 1 in x 0.177 in x 0.75 in, 1 in x 1.178 in x 1.178 in, 1 in x 1.563 in x 2.063 in, 1 in x 10.5 in x 0.75 in, 1 in x 10.5 in x 1 in, 1 in x 10.5 in x 1.719 in, 1 in x 10.5 in x 2 in, 1 in x 2 in x 0.5 in, 1 in x 2 in x 0.875 in, 1 in x 2 in x 1 in, 1 in x 2 in x 1.25 in, 1 in x 2 in x 1.5 in, 1 in x 3.125 in x 2.563 in, 1 in x 3.532 in x 1.719 in, 1 in x 6 in x 1 in, 1 in x 6 in x 4 in
Height	0.090, 0.093 in, 0.125, 0.125 in, 0.158, 0.187, 0.187 in, 0.197, 0.25 in, 0.250, 0.312 in, 0.375, 0.375 in, 0.392 in, 0.395 in, 0.5 in, 0.625, 0.75 in, 0.750, 1 in
Width	0.375 in, 0.406 in, 0.5 in, 0.531 in, 0.688 in, 0.75 in, 0.785 in, 0.86 in, 0.875 in, 1 in, 1.178 in, 1.25 in, 1.5 in, 1.719 in, 2 in, 2.063 in, 2.563 in, 3.532 in, 4, 4 in
Length	0.177 in, 0.438 in, 0.5 in, 1.178 in, 1.563 in, 1.860 in, 1.875 in, 10.5 in, 10.625 in, 2 in, 3 in, 3.125 in, 3.532 in, 4, 6, 6 in
Through Holes	0 holes, 2, 2 holes
Holding Force (lbs)	0.5, 0.8, 0.9, 1, 1.7, 10.3, 10.5, 11.9, 13.4, 14.1, 14.8, 2, 2.6, 2.9, 20.7, 21.6, 23.3, 23.7, 25, 25.3, 26.8, 28.8, 3, 3.1, 3.4, 3.5, 30.1, 36.2, 37.6, 37.9, 4, 4.2, 4.3, 4.4, 4.6, 5.4, 6, 6.2, 7.8, 7.9, 8.2, 8.3, 8.5, 9.4
Material	Ceramic

Filter Results

Part #	Size (H x L x W)	Height	Width	Length	Through Holes	Holding Force (lbs)	Diagram	Price
MA1175	1 in x 10.5 in x 2 in	1 in	2 in	10.5 in	0 holes	37.9	View Spec Image H1.000 W2.000 L10.500	$35.00	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1170	1 in x 10.5 in x 1.719 in	1 in	1.719 in	10.5 in	0 holes	36.2	View Spec Image H1.000 W1.719 L10.500	$21.62	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1185	1 in x 3.125 in x 2.563 in	1 in	2.563 in	3.125 in	0 holes	23.7	View Spec Image H1.000 W2.563 L3.125	$19.28	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1070	1 in x 10.5 in x 0.75 in	1 in	0.75 in	10.5 in	0 holes	26.8	View Spec Image H1.000 W.750 L10.500	$17.45	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1025	0.75 in x 10.5 in x 1 in	0.75 in	1 in	10.5 in	0 holes	21.6	View Spec Image H.750 W1.000 L10.500	$16.00	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1110	1 in x 10.5 in x 1 in	1 in	1 in	10.5 in	0 holes	30.1	View Spec Image H1.000 W1.000 L10.500	$13.19	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1045	0.75 in x 10.625 in x 3.532 in	0.75 in	3.532 in	10.625 in	0 holes	28.8	View Spec Image H.750 W3.532 L10.625	$12.00	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1085	1 in x 2 in x 0.875 in	1 in	0.875 in	2 in	0 holes	9.4	View Spec Image H1.000 W.875 L2.000	$8.80	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1109	1 in x 6 in x 1 in	1 in	1 in	6 in	0 holes	25	View Spec Image H1.000 W1.000 L6.000	$8.64	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA867	0.395 in x 10.5 in x 0.531 in	0.395 in	0.531 in	10.5 in	0 holes	7.9	View Spec Image H.395 W.531 L10.500	$8.49	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1160	1 in x 3.532 in x 1.719 in	1 in	1.719 in	3.532 in	0 holes	20.7	View Spec Image H1.000 W1.719 L3.532	$8.19	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1228	1 in x 6 in x 4 in	1 in	4 in	6 in	0 holes	37.6	View Spec Image H1.000 W4.000 L6.000	$8.00	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MWS1253FB	0.750 x 6 x 4	0.750	4	6	0 holes	25.3	View Spec Image	$7.65	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1227	0.75 in x 6 in x 4 in	0.75 in	4 in	6 in	0 holes	25.3	View Spec Image H.750 W4.000 L6.000	$7.65	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA883	0.395 in x 10.5 in x 0.688 in	0.395 in	0.688 in	10.5 in	0 holes	8.2	View Spec Image H.395 W.688 L10.500	$7.13	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MWS1275FB	0.625 x 6 x 4	0.625	4	6	0 holes	23.3	View Spec Image	$7.00	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1149	1 in x 2 in x 1.5 in	1 in	1.5 in	2 in	0 holes	13.4	View Spec Image H1.000 W1.500 L2.000	$6.25	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1180	1 in x 1.563 in x 2.063 in	1 in	2.063 in	1.563 in	0 holes	14.1	View Spec Image H1.000 W2.063 L1.563	$5.52	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MWS1269FB	0.375 x 6 x 4	0.375	4	6	0 holes	14.8	View Spec Image	$5.50	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MWS1170FB	0.250 x 6 x 4	0.250	4	6	0 holes	10.5	View Spec Image	$5.25	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MWS1410FB	0.187 x 6 x 4	0.187	4	6	0 holes	7.8	View Spec Image	$5.00	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1056	1 in x 2 in x 0.5 in	1 in	0.5 in	2 in	0 holes	6.2	View Spec Image H1.000 W.500 L2.000	$4.25	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1117	1 in x 1.178 in x 1.178 in	1 in	1.178 in	1.178 in	0 holes	7.8	View Spec Image H1.000 W1.178 L1.178	$4.16	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1020	0.75 in x 2 in x 1 in	0.75 in	1 in	2 in	0 holes	8.5	View Spec Image H.750 W1.000 L2.000	$4.06	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MWS1050FB	0.125 x 4 x 4	0.125	4	4	0 holes	4.3	View Spec Image	$4.00	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MWS1107FB	0.158 x 4 x 4	0.158	4	4	0 holes	5.4	View Spec Image	$4.00	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MWS1411FB	0.197 x 6 x 4	0.197	4	6	0 holes	8.3	View Spec Image	$4.00	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1000	0.5 in x 2 in x 1 in	0.5 in	1 in	2 in	0 holes	6	View Spec Image H.500 W1.000 L2.000	$3.85	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1100	1 in x 2 in x 1 in	1 in	1 in	2 in	0 holes	10.3	View Spec Image H1.000 W1.000 L2.000	$3.77	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MWS1451FB	0.090 x 4 x 4	0.090	4	4	0 holes	3.1	View Spec Image	$3.75	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA1143	1 in x 2 in x 1.25 in	1 in	1.25 in	2 in	0 holes	11.9	View Spec Image H1.000 W1.250 L2.000	$3.25	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA740	0.375 in x 2 in x 1 in	0.375 in	1 in	2 in	0 holes	4.4	View Spec Image H.375 W1.000 L2.000	$3.18	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA680	0.312 in x 2 in x 1 in	0.312 in	1 in	2 in	0 holes	3.5	View Spec Image H.312 W1.000 L2.000	$2.87	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA850	0.395 in x 2 in x 0.5 in	0.395 in	0.5 in	2 in	0 holes	3.4	View Spec Image H.395 W.500 L2.000	$2.20	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA845	0.395 in x 2 in x 0.375 in	0.395 in	0.375 in	2 in	0 holes	3	View Spec Image H.395 W.375 L2.000	$2.05	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA920	0.395 in x 2 in x 1 in	0.395 in	1 in	2 in	0 holes	4.6	View Spec Image H.395 W1.000 L2.000	$1.72	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA880	0.395 in x 2 in x 0.688 in	0.395 in	0.688 in	2 in	0 holes	4	View Spec Image H.395 W.688 L2.000	$1.48	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA480	0.187 in x 2 in x 1 in	0.187 in	1 in	2 in	0 holes	1.7	View Spec Image H.187 W1.000 L2.000	$1.45	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA640	0.25 in x 2 in x 1 in	0.25 in	1 in	2 in	0 holes	2.6	View Spec Image H.250 W1.000 L2.000	$1.25	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA370	0.093 in x 2 in x 0.785 in	0.093 in	0.785 in	2 in	0 holes	0.5	View Spec Image H.093 W.785 L2.000	$1.01	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA460	0.125 in x 2 in x 1 in	0.125 in	1 in	2 in	0 holes	0.9	View Spec Image H.125 W1.000 L2.000	$1.01	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA860	0.395 in x 2 in x 0.531 in	0.395 in	0.531 in	2 in	0 holes	3.5	View Spec Image H.395 W.531 L2.000	$0.95	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA610	0.25 in x 3 in x 2 in	0.25 in	2 in	3 in	0 holes	3.4	View Spec Image H.250 W2.000 L3.000	$0.88	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA760	0.392 in x 1.875 in x 0.406 in	0.392 in	0.406 in	1.875 in	0 holes	2.9	View Spec Image H.392 W.406 L1.875	$0.84	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA900	0.395 in x 0.438 in x 1 in	0.395 in	1 in	0.438 in	0 holes	2	View Spec Image H.395 W1.000 L.438	$0.79	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA820H	0.392 in x 1.860 in x 0.86 in	0.392 in	0.86 in	1.860 in	2 holes	4.2	View Spec Image H.392 W.860 L1.86	$0.64	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
DH914	1 in x 0.177 in x 0.75 in	1 in	0.75 in	0.177 in	0 holes	1	View Spec Image H1.000 W.750 L.177	$0.57	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA570	0.25 in x 0.5 in x 0.375 in	0.25 in	0.375 in	0.5 in	0 holes	0.8	View Spec Image H.250 W.375 L.500	$0.42	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
MA820	0.392 in x 1.875 in x 0.875 in	0.392 in	0.875 in	1.875 in	0 holes	4.2	View Spec Image H.392 W.875 L1.875	$0.31	Ceramic Rectangle Magnets, C-8 Block quantity QTY DISCOUNT PRICE
