Ceramic Holding Assemblies provide a strong magnetic field. The ceramic magnet material possesses high coercive force and resists demagnetization from heat, vibration, and electrical fields. Most of our ceramic assemblies are permanently embedded in epoxy plastic. They are typically more economical than Alnico assemblies and can be used in temperatures up to 180°F. Temperatures higher than 180°F can cause the standard epoxy that holds the magnet material to fail.

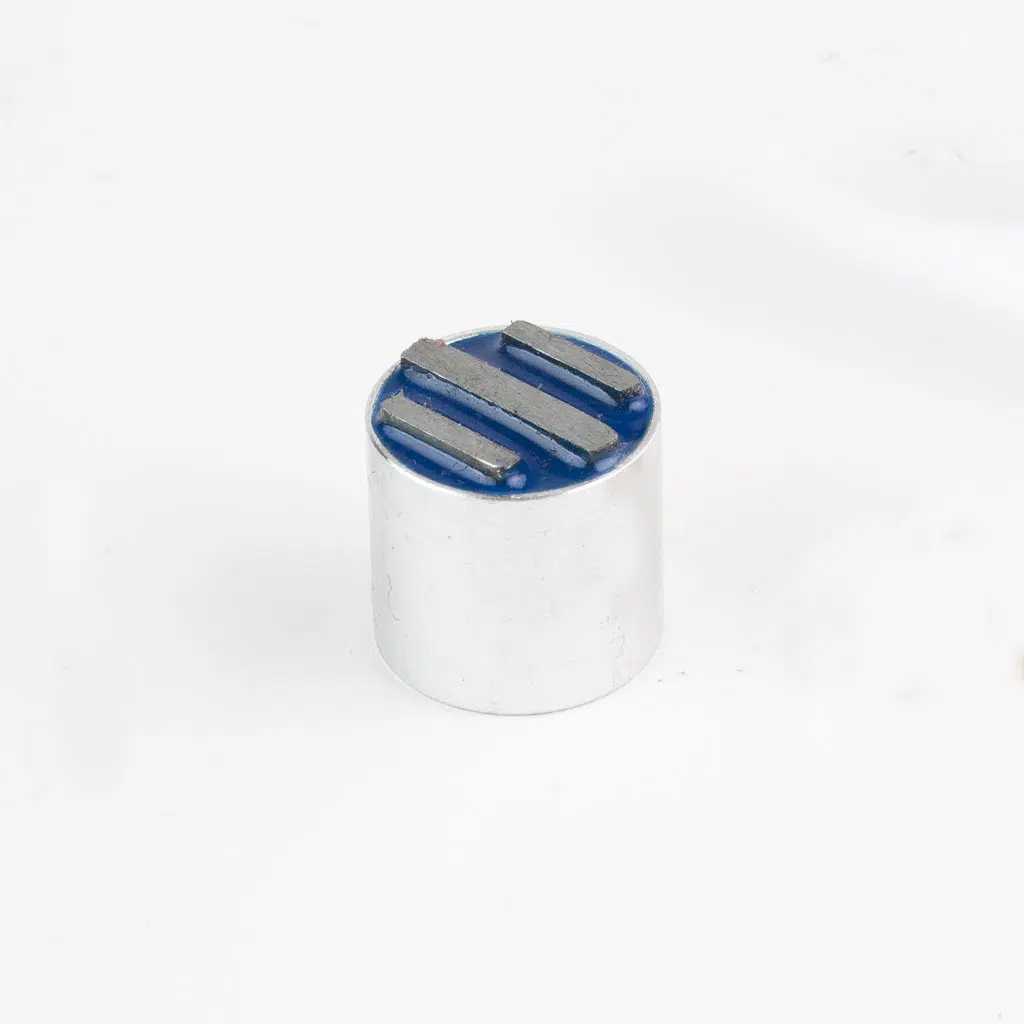

Ceramic Pot Magnets, Three-Pole, Tapped
From $9.50 – $21.93
Weight | N/A |
---|---|
Dimensions | N/A |
Size (D x T) | 0.625 in x 0.75 in, 0.625 in x 1 in, 0.75 in x 0.5 in, 0.75 in x 0.75 in, 0.75 in x 1 in, 0.75 in x 1.25 in, 1 in x 0.5 in, 1 in x 0.75 in, 1 in x 1 in, 1 in x 1.25 in, 1 in x 1.5 in, 1.25 in x 0.5 in, 1.25 in x 0.75 in, 1.25 in x 1 in, 1.25 in x 1.25 in, 1.25 in x 1.5 in |
Diameter | 0.625 in, 0.75 in, 1 in, 1.25 in |
Thickness | 0.5 in, 0.75 in, 1 in, 1.25 in, 1.5 in |
Tap Size | #.25-20, #10-32, #8-32 |
Tap Depth | 0.1875, 0.25 |
Holding Force (lbs) | 10, 11, 13, 14, 18, 23, 24, 32, 40, 42, 43, 45, 54, 64, 68, 8 |
Material | Ceramic |
No. Poles | 3 |
Package Quantity | 1 |
Filter Results

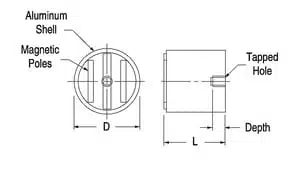

Part # | Size (D x T) | Diameter | Thickness | Tap Size | Tap Depth | Holding Force (lbs) | No. Poles | Diagram | Price | |
---|---|---|---|---|---|---|---|---|---|---|
BM1942TX1-1/2 | 1.25 in x 1.5 in | 1.25 in | 1.5 in | #.25-20 | 0.25 | 68 | 3 | View Spec Image D1.250 L1.500 | $21.93 | QTY DISCOUNT PRICE |
BM1942TX1-1/4 | 1.25 in x 1.25 in | 1.25 in | 1.25 in | #.25-20 | 0.25 | 64 | 3 | View Spec Image D1.250 L1.250 | $21.83 | QTY DISCOUNT PRICE |
BM1942TX1 | 1.25 in x 1 in | 1.25 in | 1 in | #.25-20 | 0.25 | 54 | 3 | View Spec Image D1.250 L1.000 | $21.1 | QTY DISCOUNT PRICE |
BM1940TX1-1/2 | 1 in x 1.5 in | 1 in | 1.5 in | #.25-20 | 0.25 | 45 | 3 | View Spec Image D1.000 L1.500 | $20.91 | QTY DISCOUNT PRICE |
BM1940TX1-1/4 | 1 in x 1.25 in | 1 in | 1.25 in | #.25-20 | 0.25 | 43 | 3 | View Spec Image D1.000 L1.250 | $20.81 | QTY DISCOUNT PRICE |
BM1942TX3/4 | 1.25 in x 0.75 in | 1.25 in | 0.75 in | #.25-20 | 0.1875 | 40 | 3 | View Spec Image D1.250 L.750 | $20.52 | QTY DISCOUNT PRICE |
BM1942TX1/2 | 1.25 in x 0.5 in | 1.25 in | 0.5 in | #.25-20 | 0.1875 | 11 | 3 | View Spec Image D1.250 L.500 | $20.42 | QTY DISCOUNT PRICE |
BM1940TX1 | 1 in x 1 in | 1 in | 1 in | #.25-20 | 0.25 | 42 | 3 | View Spec Image D1.000 L1.000 | $20.21 | QTY DISCOUNT PRICE |
BM1940TX3/4 | 1 in x 0.75 in | 1 in | 0.75 in | #.25-20 | 0.1875 | 32 | 3 | View Spec Image D1.000 L.750 | $19.58 | QTY DISCOUNT PRICE |
BM1940TX1/2 | 1 in x 0.5 in | 1 in | 0.5 in | #.25-20 | 0.1875 | 10 | 3 | View Spec Image D1.000 L.500 | $19.48 | QTY DISCOUNT PRICE |
BM1938TX1-1/4 | 0.75 in x 1.25 in | 0.75 in | 1.25 in | #10-32 | 0.1875 | 24 | 3 | View Spec Image D.750 L1.250 | $18.12 | QTY DISCOUNT PRICE |
BM1938TX1 | 0.75 in x 1 in | 0.75 in | 1 in | #10-32 | 0.1875 | 23 | 3 | View Spec Image D.750 L1.000 | $18.02 | QTY DISCOUNT PRICE |
BM1938TX3/4 | 0.75 in x 0.75 in | 0.75 in | 0.75 in | #10-32 | 0.1875 | 18 | 3 | View Spec Image D.750 L.750 | $17.16 | QTY DISCOUNT PRICE |
BM1938TX1/2 | 0.75 in x 0.5 in | 0.75 in | 0.5 in | #10-32 | 0.1875 | 10 | 3 | View Spec Image D.750 L.500 | $17.06 | QTY DISCOUNT PRICE |
BM1936TX1 | 0.625 in x 1 in | 0.625 in | 1 in | #8-32 | 0.1875 | 14 | 3 | View Spec Image D.625 L1.000 | $16.08 | QTY DISCOUNT PRICE |
BM1936TX3/4 | 0.625 in x 0.75 in | 0.625 in | 0.75 in | #8-32 | 0.1875 | 13 | 3 | View Spec Image D.625 L.750 | $15.98 | QTY DISCOUNT PRICE |
BM1936TX1/2 | 0.625 in x 0.75 in | 0.625 in | 0.75 in | #8-32 | 0.1875 | 8 | 3 | View Spec Image D.625 L.750 | $9.5 | QTY DISCOUNT PRICE |
