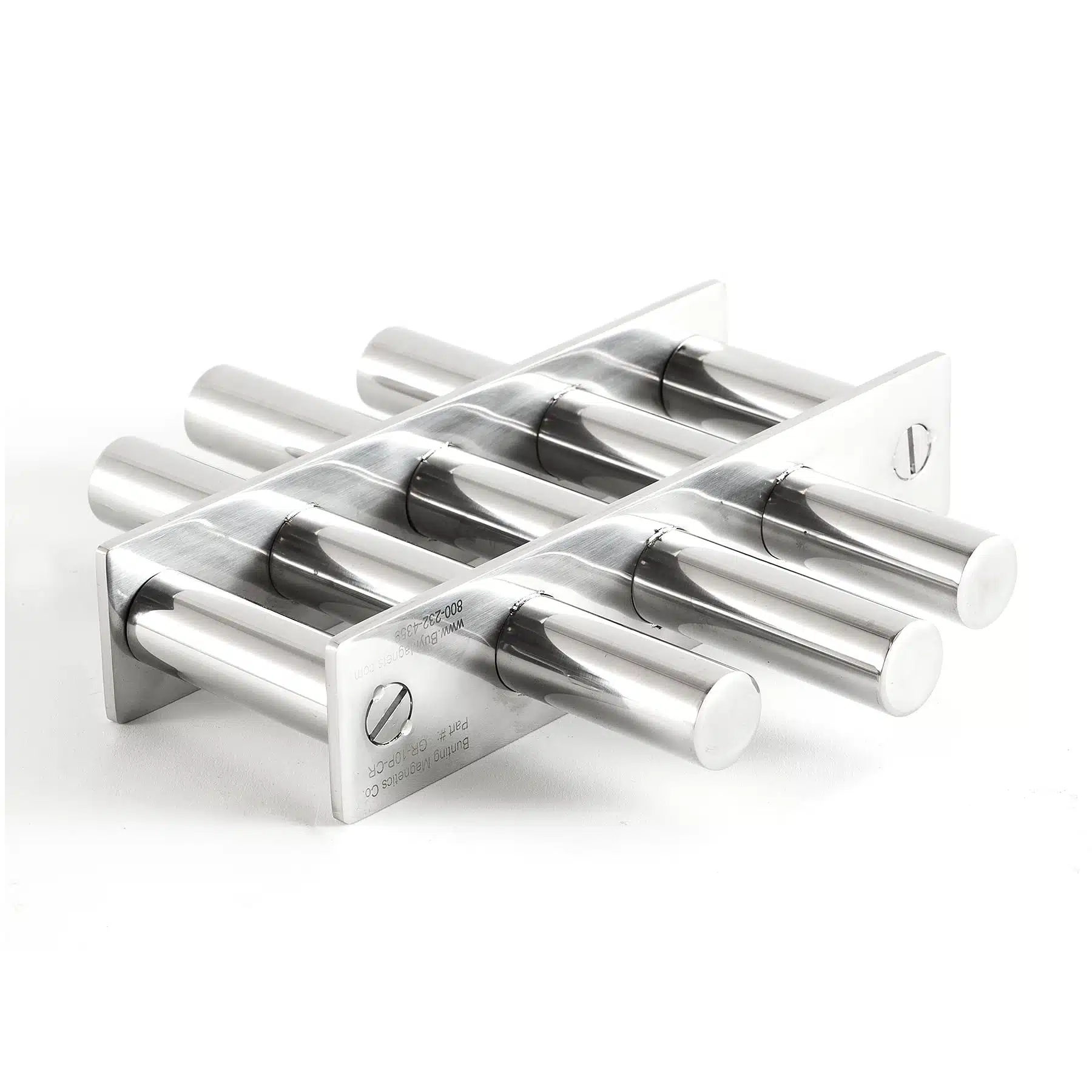

Ceramic Grate Magnet, No Baffle, Round

From $55.00$183.00

Ceramic (F) Grate Magnets / Ceramic Hopper Magnets provide a properly configured, high-density magnetic field to trap and hold ferrous fines, fragments, and small metal objects as product flows through them. Stainless steel tubing and frames are welded into strong, integral units. The average Gauss on the surface of the cartridge is 1,975, with an average pull strength of 1.1lbs (with a 1/2″ ferrous ball). They can be installed – or simply laid – inside hoppers, housings, and bins – and easily removed for cleaning. Grates are built for low-abrasion applications and should measure at least twice the size of your outlet opening, so as not to restrict product flow.

Read More
Read Less
Weight N/A
Dimensions N/A
Diameter

10 in, 12 in, 4 in, 6 in, 8 in

Baffle

None

Holding Force (lbs)

Gauss

1975

Material

Ceramic

Package Quantity

1

Filter Results

Part # DiameterBaffleHolding Force (lbs)Gauss Price

GR-10P-CR

10 inNone1.11975$183
QTY DISCOUNT PRICE

GR-12P-CR

12 inNone1.11975$153
QTY DISCOUNT PRICE

GR-8P-CR

8 inNone1.11975$132
QTY DISCOUNT PRICE

GR-6P-CR

6 inNone1.11975$90
QTY DISCOUNT PRICE

GR-4P-CR

4 inNone1.11975$55
QTY DISCOUNT PRICE
