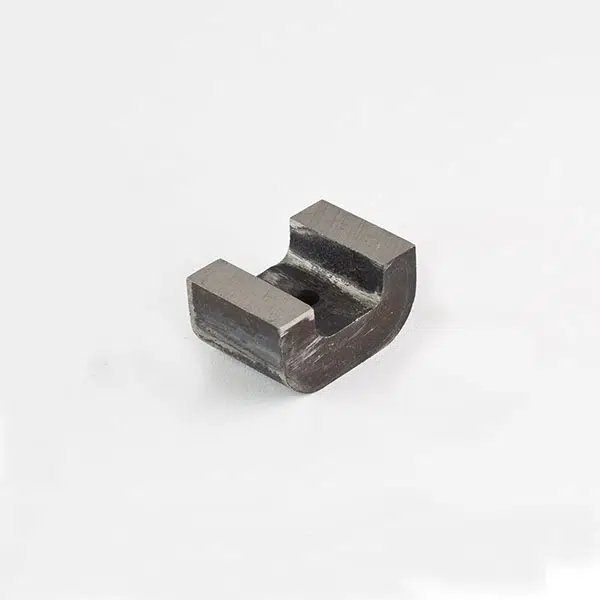

Alnico U-Shaped Magnet, Round Base, Grade 5
From $18.00
Alnico magnets are widely used in industrial and consumer applications where strong permanent magnets are needed; examples are electric motors, electric guitar pickups, microphones, sensors, loudspeakers, traveling wave tubes, and cow magnets.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (H x L x W) | 0.843 in x 1.625 in x 1.125 in |
| Wt. (lbs) | 0.284 |
| Holding Force (lbs) | |
| Inside Diameter | 0.25 in |
| Length | 1.625 in |
| Thickness | 0.843 in |
| Width | 1.125 in |
| Grade | 5 |
| Material | Alnico |
| Package Quantity | 1 |
Filter Results
| Part # | Size (H x L x W) | Wt. (lbs) | Holding Force (lbs) | Inside Diameter | Length | Thickness | Width | Grade | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

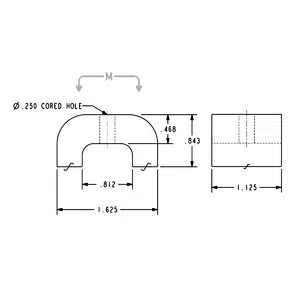

CU610 | 0.843 in x 1.625 in x 1.125 in | 0.284 | 19 | 0.25 in | 1.625 in | 0.843 in | 1.125 in | 5 | View Spec Image | $18.00 | QTY DISCOUNT PRICE |
