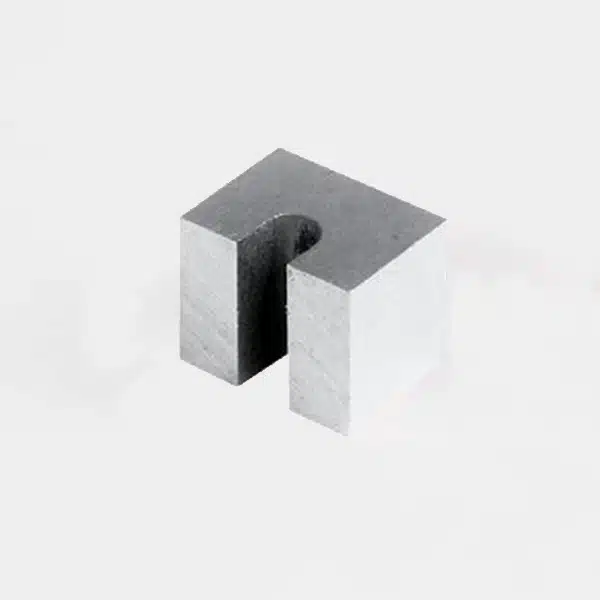

Alnico U-Shaped Magnet, Block, Grade 5
From $2.40
Alnico magnets are widely used in industrial and consumer applications where strong permanent magnets are needed; examples are electric motors, electric guitar pickups, microphones, sensors, loudspeakers, traveling wave tubes, and cow magnets.
| Weight | N/A |
|---|---|
| Dimensions | N/A |

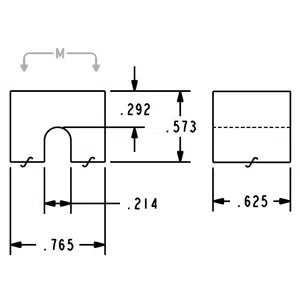

| Size (H x L x W) | 0.573 in x 0.765 in x 0.625 in |
| Wt. (lbs) | 0.063 |
| Holding Force (lbs) | |
| Material | Alnico |
| Grade | 5 |
| Thickness | 0.573 in |
| Length | 0.765 in |
| Width | 0.625 in |
| Package Quantity | 1 |
Filter Results
| Part # | Size (H x L x W) | Wt. (lbs) | Holding Force (lbs) | Grade | Thickness | Length | Width | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
CU609 | 0.573 in x 0.765 in x 0.625 in | 0.063 | 6.5 | 5 | 0.573 in | 0.765 in | 0.625 in | View Spec Image | $2.40 | QTY DISCOUNT PRICE |
