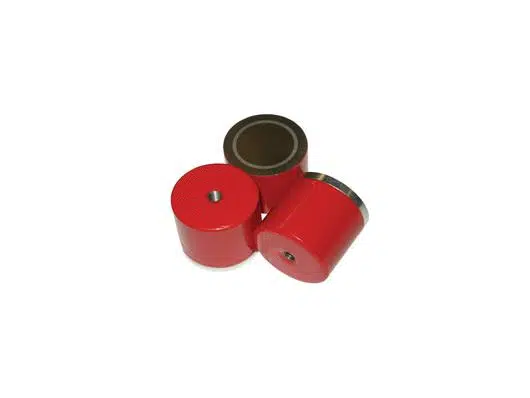

Alnico Pot Magnets, Deep
From $1.58 – $10.50
Alnico Holding Assemblies are well-suited for high-heat applications. Alnico magnets have the widest range of temperature stability of any standard magnetic material. At temperatures as high as 840°F, they maintain about 78% of their room-temperature magnetic properties. Alnico assemblies are strongly recommended for use in temperature ranges from 180-800°F. We recommend these magnets be mounted with nonferrous fasteners and insulated when installed in ferrous materials to avoid holding value drops of 20% or more.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (D x T) | 0.394 in x 0.62 in, 0.5 in x 0.63 in, 0.689 in x 0.63 in, 0.807 in x 0.748 in, 1.063 in x 0.984 in, 1.378 in x 1.181 in |
| Diameter | 0.394 in, 0.5 in, 0.689 in, 0.807 in, 1.063 in, 1.378 in |
| Thickness | 0.62 in, 0.63 in, 0.748 in, 0.984 in, 1.181 in |
| Tap Size | M3, M6 |
| Holding Force (lbs) | |
| Material | Alnico |
| Package Quantity | 1 |
Filter Results
| Part # | Size (D x T) | Diameter | Thickness | Tap Size | Holding Force (lbs) | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|
MAG834 | 1.378 in x 1.181 in | 1.378 in | 1.181 in | M6 | 30.9 | View Spec Image D1.378 T1.181 MM6 | $10.5 | QTY DISCOUNT PRICE |
MAG833 | 1.063 in x 0.984 in | 1.063 in | 0.984 in | M6 | 13.2 | View Spec Image D1.063 T.984 MM6 | $5.5 | QTY DISCOUNT PRICE |
MAG832N | 0.807 in x 0.748 in | 0.807 in | 0.748 in | M6 | 8.8 | View Spec Image D.807 T.748 MM6 | $2.63 | QTY DISCOUNT PRICE |
MAG831 | 0.689 in x 0.63 in | 0.689 in | 0.63 in | M6 | 5.5 | View Spec Image D.689 T.630 MM6 | $2.36 | QTY DISCOUNT PRICE |
MAG830 | 0.5 in x 0.63 in | 0.5 in | 0.63 in | M3 | 4.4 | View Spec Image D.500 T.630 MM3 | $1.71 | QTY DISCOUNT PRICE |
MAG829 | 0.394 in x 0.62 in | 0.394 in | 0.62 in | M3 | 2.2 | View Spec Image D.394 T.620 MM3 | $1.58 | QTY DISCOUNT PRICE |
