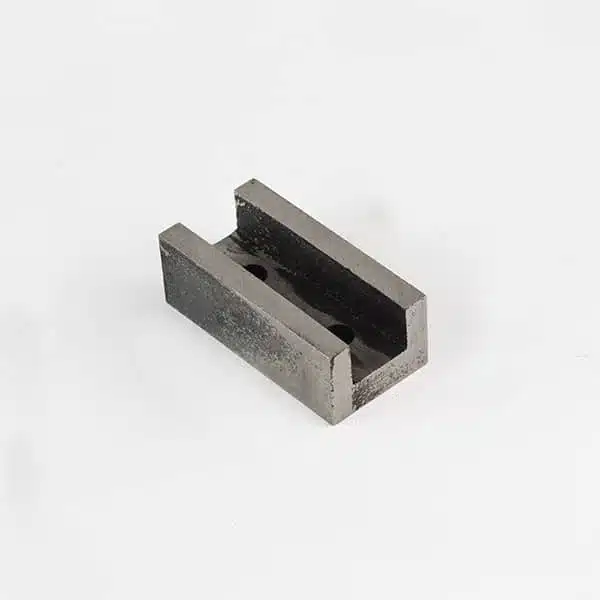

Alnico Channel Magnets, 2-Hole, 2.25in
From $42.30
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (H x L x W) | 0.797 in x 2.25 in x 1.125 in |
| Wt. (lbs) | 0.359 |
| Holding Force (lbs) | |
| Material | Alnico |
| Length | 2.25 in |
| Width | 1.125 in |
| Thickness | 0.797 in |
| Channel Width | 0.625 in |
| Edge to Hole | 0.563 in |
| Package Quantity | 1 |
Filter Results

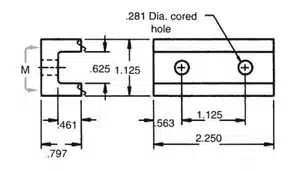

| Part # | Size (H x L x W) | Wt. (lbs) | Holding Force (lbs) | Length | Width | Thickness | Channel Width | Edge to Hole | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
CC812 | 0.797 in x 2.25 in x 1.125 in | 0.359 | 27 | 2.25 in | 1.125 in | 0.797 in | 0.625 in | 0.563 in | View Spec Image | $42.3 | QTY DISCOUNT PRICE |
