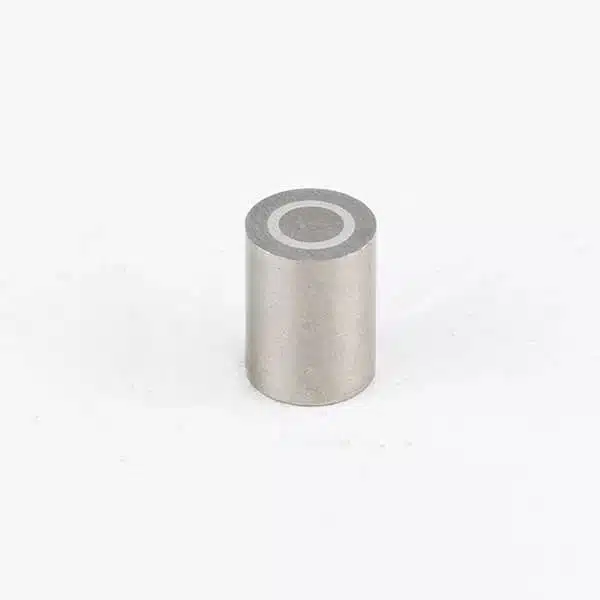

Alnico Pot Magnets, BM10 Series, Imperial
From $0.50 – $16.00
Alnico Holding Assemblies are well-suited for high-heat applications. Alnico magnets have the widest range of temperature stability of any standard magnetic material. At temperatures as high as 840°F, they maintain about 78% of their room-temperature magnetic properties. Alnico assemblies are strongly recommended for use in temperature ranges from 180-800°F. We recommend these magnets be mounted with nonferrous fasteners and insulated when installed in ferrous materials to avoid holding value drops of 20% or more.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size (D x T) | 0.25 in x 0.5 in, 0.375 in x 0.5 in, 0.375 in x 0.75 in, 0.375 in x 1 in, 0.5 in x 0.5 in, 0.5 in x 0.75 in, 0.5 in x 1 in, 0.625 in x 0.5 in, 0.625 in x 1 in, 0.75 in x 0.75 in, 0.75 in x 1 in, 1 in x 0.5 in, 1 in x 0.75 in, 1 in x 1 in, 1.25 in x 0.75 in, 1.25 in x 1 in, 1.25 in x 1.375 in |
| Diameter | 0.25 in, 0.375 in, 0.5 in, 0.625 in, 0.75 in, 1 in, 1.25 in |
| Thickness | 0.5 in, 0.75 in, 1 in, 1.375 in |
| Tap Size | #.25-20, #10-32, #6-32, #8-32 |
| Tap Depth | 0.125, 0.1875, 0.25 |
| Holding Force (lbs) | 0.5, 0.7, 1, 1.3, 1.9, 11, 19, 2.3, 2.7, 21, 25, 26, 36, 4.2, 6, 9 |
| Material | Alnico |
| Package Quantity | 1 |
Filter Results

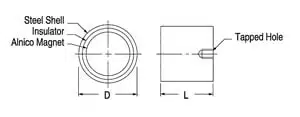

| Part # | Size (D x T) | Diameter | Thickness | Tap Size | Tap Depth | Holding Force (lbs) | Diagram | Price | |
|---|---|---|---|---|---|---|---|---|---|
CO1452 | 1.25 in x 1.375 in | 1.25 in | 1.375 in | #10-32 | 0.1875 | 36 | View Spec Image D1.250 L1.375 | $16 | QTY DISCOUNT PRICE |
BM1072X1/2 | 0.5 in x 0.5 in | 0.5 in | 0.5 in | #6-32 | 0.125 | 1.9 | View Spec Image D.500 L.500 | $9.83 | QTY DISCOUNT PRICE |
BM1076X1 | 1 in x 1 in | 1 in | 1 in | #10-32 | 0.125 | 25 | View Spec Image D1.000 L1.000 | $9.68 | QTY DISCOUNT PRICE |
BM1077X1 | 1.25 in x 1 in | 1.25 in | 1 in | #.25-20 | 0.25 | 26 | View Spec Image D1.250 L1.000 | $9.62 | QTY DISCOUNT PRICE |
BM1076X3/4 | 1 in x 0.75 in | 1 in | 0.75 in | #10-32 | 0.125 | 19 | View Spec Image D1.000 L.750 | $9.25 | QTY DISCOUNT PRICE |
BM1077X3/4 | 1.25 in x 0.75 in | 1.25 in | 0.75 in | #.25-20 | 0.25 | 21 | View Spec Image D1.250 L.750 | $8.75 | QTY DISCOUNT PRICE |
BM1076X1/2 | 1 in x 0.5 in | 1 in | 0.5 in | #10-32 | 0.125 | 11 | View Spec Image D1.000 L.500 | $8.4 | QTY DISCOUNT PRICE |
BM1074X1 | 0.75 in x 1 in | 0.75 in | 1 in | #8-32 | 0.125 | 11 | View Spec Image D.750 L1.000 | $7.28 | QTY DISCOUNT PRICE |
BM1073X1 | 0.625 in x 1 in | 0.625 in | 1 in | #8-32 | 0.125 | 6 | View Spec Image D.625 L1.000 | $5.38 | QTY DISCOUNT PRICE |
BM1072X1 | 0.5 in x 1 in | 0.5 in | 1 in | #6-32 | 0.125 | 2.7 | View Spec Image D.500 L1.000 | $5.3 | QTY DISCOUNT PRICE |
BM1074X3/4 | 0.75 in x 0.75 in | 0.75 in | 0.75 in | #8-32 | 0.125 | 9 | View Spec Image D.750 L.750 | $4.28 | QTY DISCOUNT PRICE |
BM1071X1 | 0.375 in x 1 in | 0.375 in | 1 in | #6-32 | 0.125 | 1.3 | View Spec Image D.375 L1.000 | $4.05 | QTY DISCOUNT PRICE |
BM1071X3/4 | 0.375 in x 0.75 in | 0.375 in | 0.75 in | #6-32 | 0.125 | 1 | View Spec Image D.375 L.750 | $3.2 | QTY DISCOUNT PRICE |
BM1073X1/2 | 0.625 in x 0.5 in | 0.625 in | 0.5 in | #8-32 | 0.125 | 4.2 | View Spec Image D.625 L.500 | $3.18 | QTY DISCOUNT PRICE |
BM1072X3/4 | 0.5 in x 0.75 in | 0.5 in | 0.75 in | #6-32 | 0.125 | 2.3 | View Spec Image D.500 L.750 | $2.7 | QTY DISCOUNT PRICE |
BM1071X1/2 | 0.375 in x 0.5 in | 0.375 in | 0.5 in | #6-32 | 0.125 | 0.7 | View Spec Image D.375 L.500 | $2.4 | QTY DISCOUNT PRICE |
BM1070X1/2 | 0.25 in x 0.5 in | 0.25 in | 0.5 in | #6-32 | 0.125 | 0.5 | View Spec Image D.250 L.500 | $0.5 | QTY DISCOUNT PRICE |
